IP Camera |
Camera |
Image Sensor |
1/2.4" Progressive Scan CMOS |
Max resolution |
3840*2160(8MP) |
Main Stream |
50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
Substream |
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
Video Bitrate |
32 Kbps - 16 Mbps |
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
Audio Input |
Built-in Microphone, record with audio |
Lens |
4 mm |
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
Angle of View |
Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
Supplement Light Type |
Smart Dual-Light, IR, White Light |
Supplement Light Range |
IR: up to 30 m, white Light: up to 20 m |
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
Image Enhancement |
BLC, HLC, 3D DNR |
Wide Dynamic Range |
120 dB WDR |
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
API |
Open Network Video Interface Version (Profile S, Profile T, Profile G) |
Region of Interest (ROI) |
1 fixed region for main stream |
Privacy Mask |
4 programmable polygon privacy masks |
General Function |
Rotate mode, mirror, password protection, remote access |
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
General |
Housing |
Metal & Plastic |
Color |
White |
Storage |

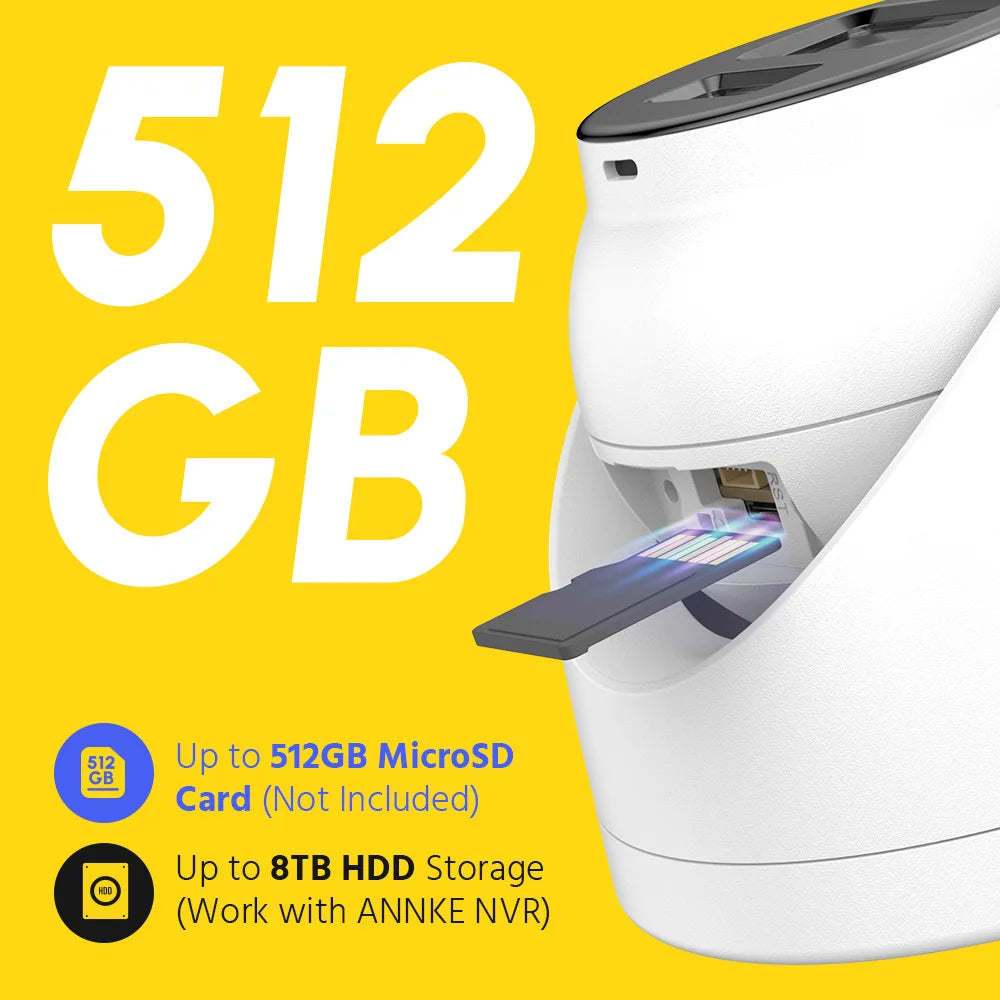

Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
Hardware Reset |
Yes |
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
Indoor/Outdoor Use |
Indoor/Outdoor |
Interface Protection |
IP67 |
Dimension (L X W X H) |
Ø110 mm × 89.2 mm (Ø4.3" × 3.5") |
Weight |
0.7 lb./340 g |
