PowMr 60A MPPT Solar Charge Controller With LCD Display
PowMr 60A MPPT Solar Charge Controller With LCD Display
Regular price
$119.99 USD
Regular price
$0.00 USD
Sale price
$119.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
You can maximize your solar array’s output and protect your battery bank with this auto-detecting 60A MPPT charge controller that adapts seamlessly to 12V/24V/36V/48V systems.
- Automatically detects your system voltage from 12V to 48V DC and delivers charging efficiency above 98.1%, ensuring every watt from your solar panels converts directly into stored energy.

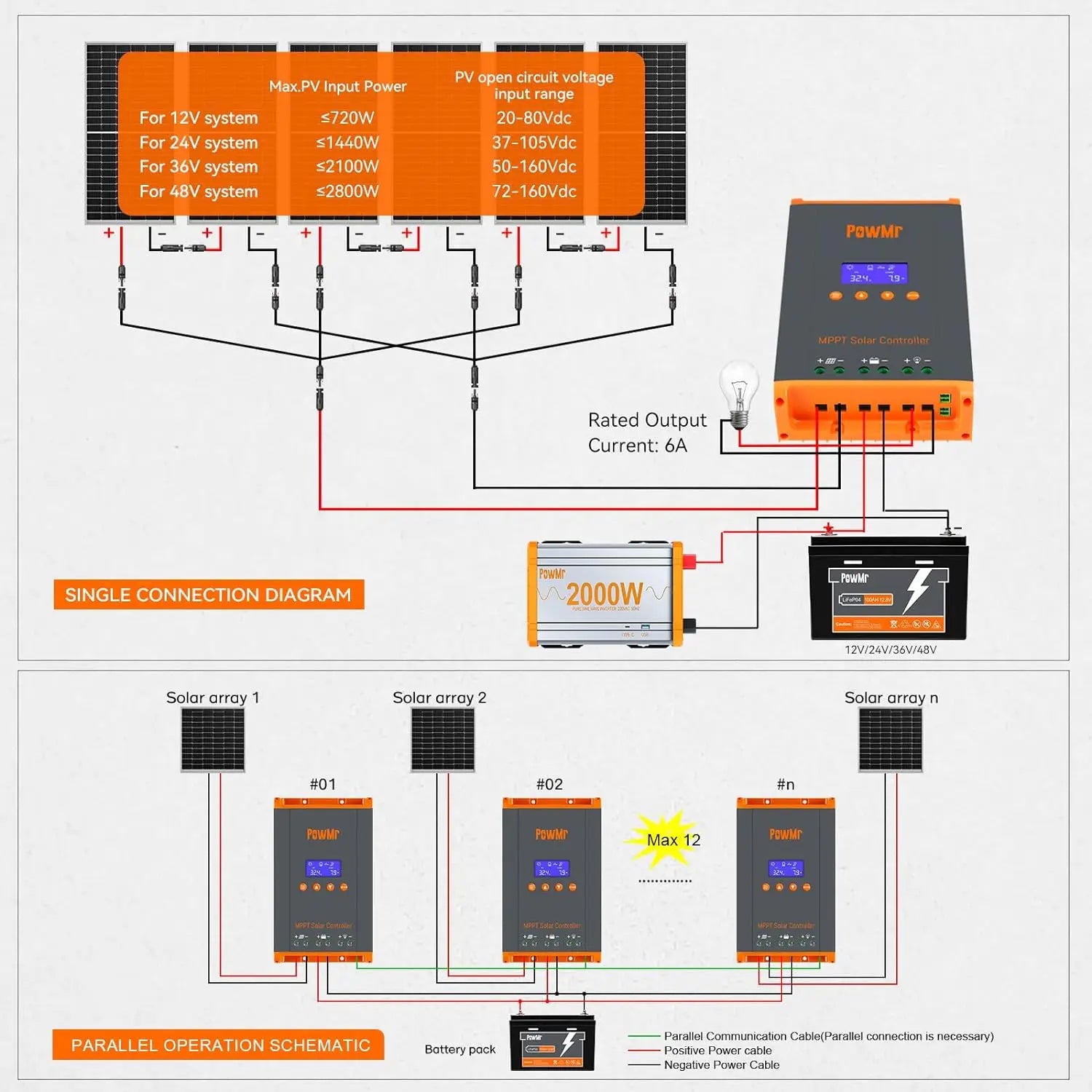

- Scales parallel operation for up to twelve controllers, allowing you to expand your panel capacity past 2,800W on 48V circuits without complex rewiring.

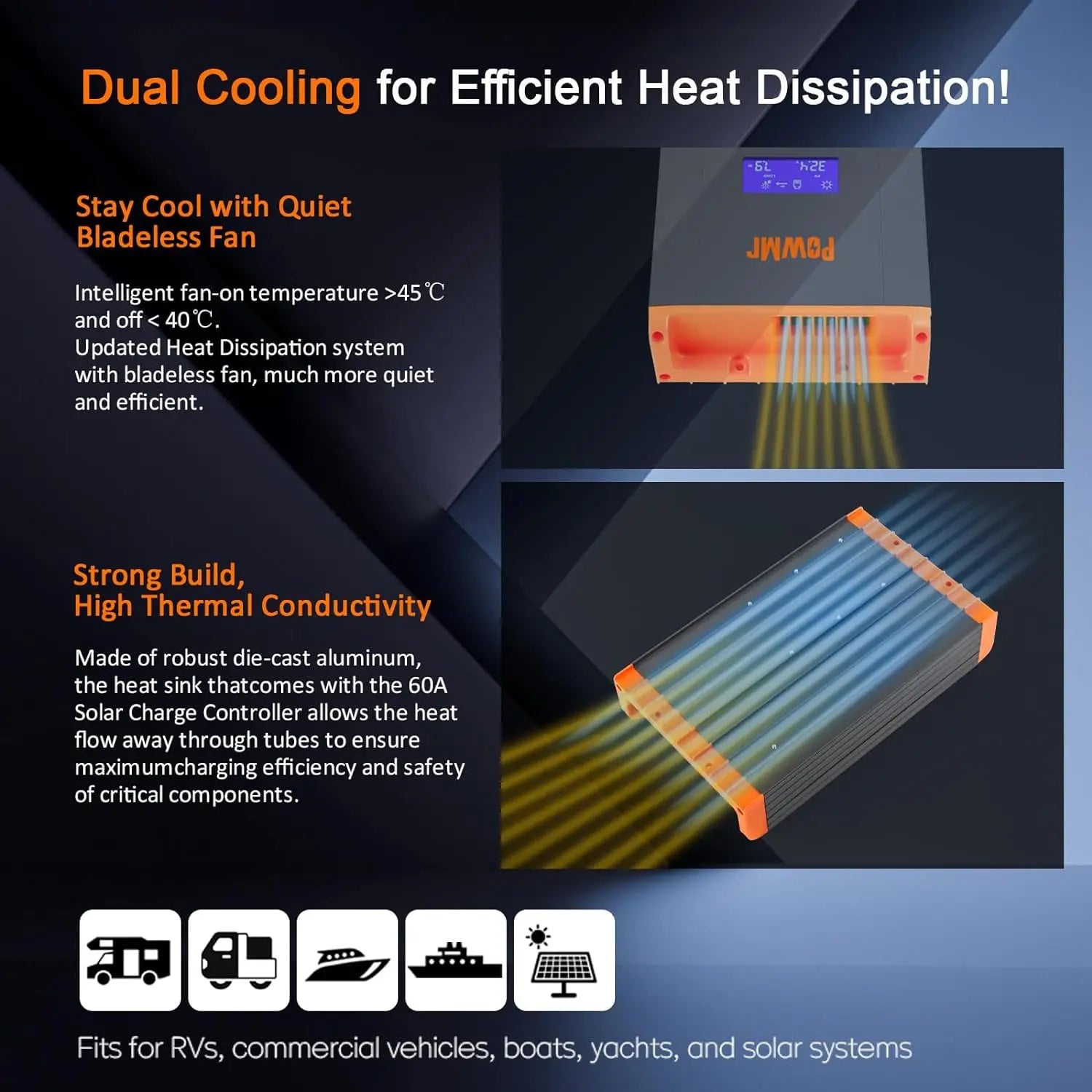

- Features a built-in DSP processor and active cooling fan that automatically regulate performance when temperatures exceed 45°C, keeping your home, RV, or boat installation stable all day.
- Provides dedicated lithium activation modes that safely wake protected LiFePO4 cells while delivering a continuous 6A load circuit for your essential DC appliances and lighting.
Models |
HHJ60-PRO |
Solar Input Parameters | |
Max. Solar Array Open-Circuit Voltage |
160V |
|
Maximum Input Power:
For 12V System
For 24V System
For 36V System
For 48V System
|
720W
1440W
2100W
2800W
|
|
Input Voltage Range:
For 12V System
For 24V System
For 36V System
For 48V System
|
20V~80V
37V~105V
50V~160V
72V~160V
|
Battery Charging Parameters | |
Charging Technology |
MPPT |
Charging Algorithm |

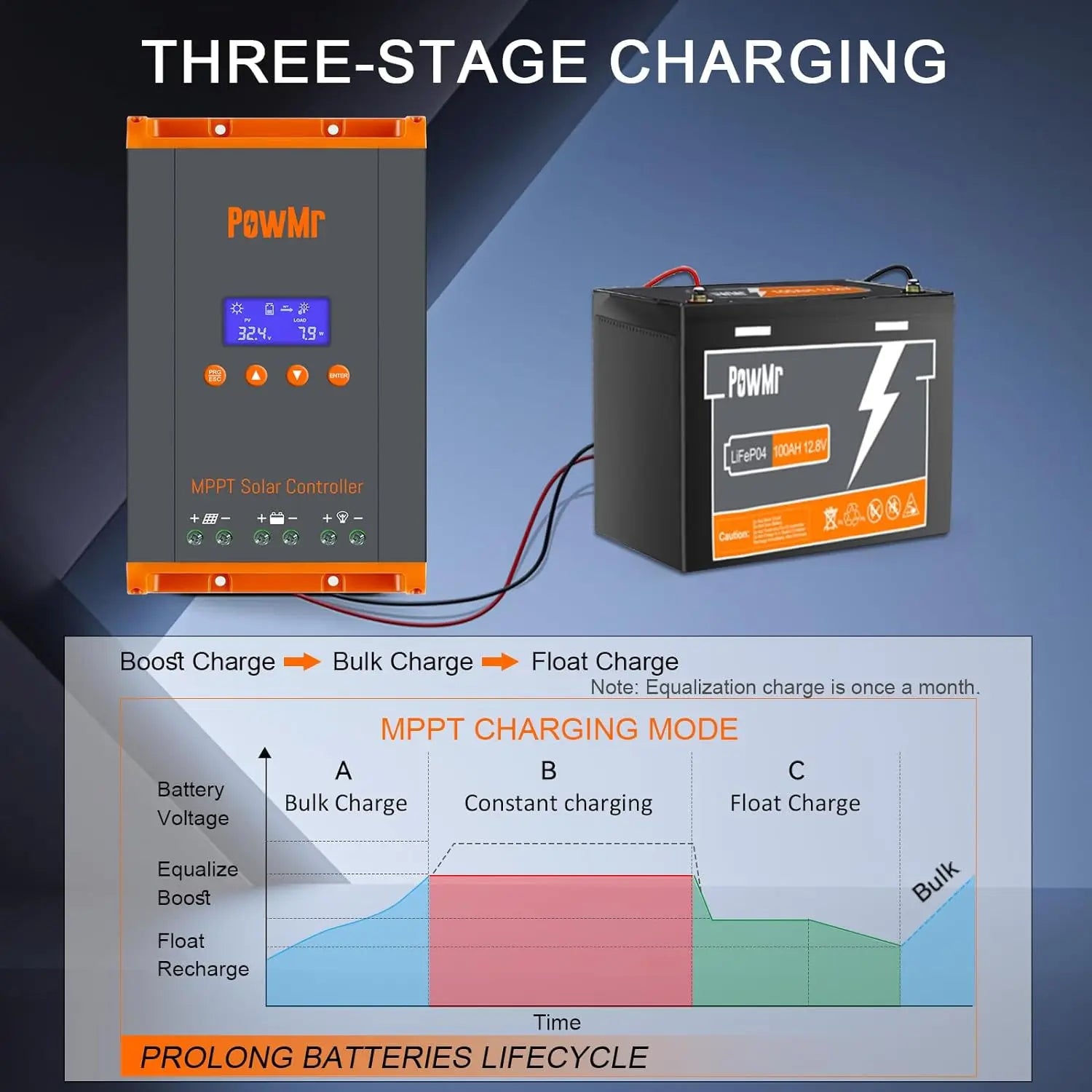

3 stages |
|
Battery Voltage Auto-Detection
12V System
24V System
36V System
48V System
|
DC9V~DC15V
DC18V~DC29V
DC30V~DC39V
DC40V~DC60V
|
Overcharge Protection Voltage |
60V |
Charging Limit Current |
61A |
Maximum Efficiency |
≥98. 1% |
Solar Utilization Rate |
≥99% |
Load Terminal Output | |
Rated Output Current |
6A |
Maximum DC Output Current |
8A |
Protection | |
Temperature Protection |
75℃ / 167 ℉ |
Fan Start Temperature |
>45℃ / 104℉ |
Fan Shutdown Temperature |
<40℃ / 95℉ |
General Specification | |
Electromagnetic Compatibility |
EN61000, EN55022, EN55024 |
Protection Level |
IP21 |
Operating Temperature |
-20℃ ~ +55℃ / -4℉ ~ 131℉ |
Storage Temperature |
-40℃ ~ +75℃ / -40℉ ~ 167℉ |
